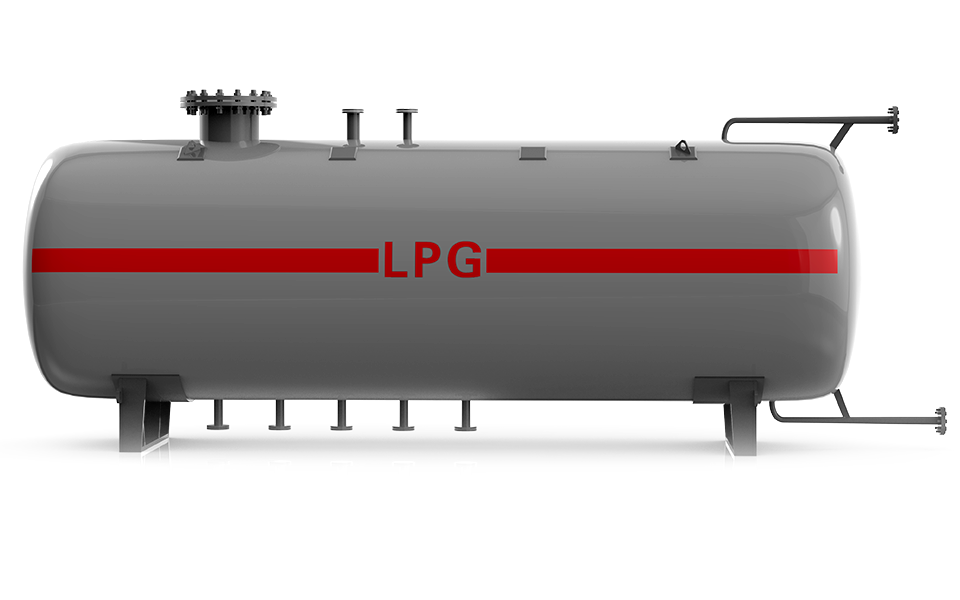

Volume: 5, 10, 15, 20, 30, 40, 50, ..., 200 (CBM)
Design pressure: 17.7 bar(250PSI)
Design Temperature: -20~54℃
Main Material: Q345R
Standard: GB150, ASME, etc.
Customize available: tank volume/logo/color/nozzle arrangement LPG storage tanks are widely used in industry and civil use, including liquefied petroleum gas storage and distribution stations, filling stations, gasification stations, and other projects.

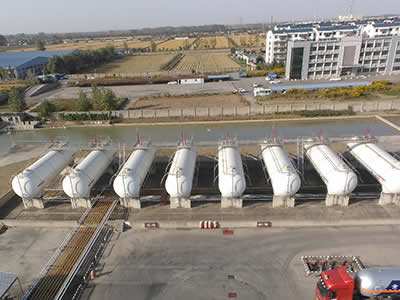

Storage and Distribution Station
Filling Station

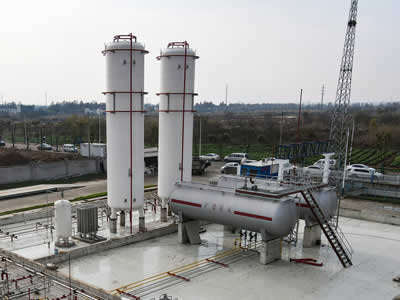

LPG Gasification Station
LPG Skid Station
| Nominal Capacity | Tank Weight | Inner Diameter | Overall Lenght | Safety Valve Size | |
| Liter | Tonne | KG | mm | mm | DN |
| 5000 | 2.5 | 1605 | 1200 | 4663 | 50 |
| 10000 | 5 | 2765 | 1600 | 5295 | 65 |
| 15000 | 7.5 | 4265 | 1800 | 4265 | 80 |
| 20000 | 10 | 5060 | 2000 | 6747 | 80 |
| 25000 | 12.5 | 5980 | 2000 | 8347 | 80 |
| 30000 | 15 | 6935 | 2000 | 9937 | 100 |
| 40000 | 20 | 8920 | 2600 | 8026 | 100 |
| 50000 | 25 | 10620 | 2600 | 9916 | 100 |
| 60000 | 30 | 12340 | 2600 | 11796 | 100 |
| 60000 | 30 | 13165 | 221800 | 10276 | 100 |
| 80000 | 40 | 16985 | 3000 | 11878 | 80x2 |
| 100000 | 50 | 20015 | 3000 | 14708 | 80x2 |
| 120000 | 60 | 23755 | 3000 | 17538 | 100x2 |
| 120000 | 60 | 26100 | 3600 | 12452 | 80x2 |
| 150000 | 75 | 31390 | 3600 | 15402 | 100x2 |
| 200000 | 100 | 38990 | 3600 | 18332 | 100x2 |
Zhongjie Special Equipment attaches great importance to scientific research and innovation; Possess multiple technical patents
