Volume: 5, 10, 15, 20, 30, 40, 60CBM(integrated/split)
Pressure Range: 1.63 MPa - 1.77 MPa
Temperature Range: -20~55℃
Rated Flow: 8-12m³/h
Standard: GB150/ASME for LPG TANK

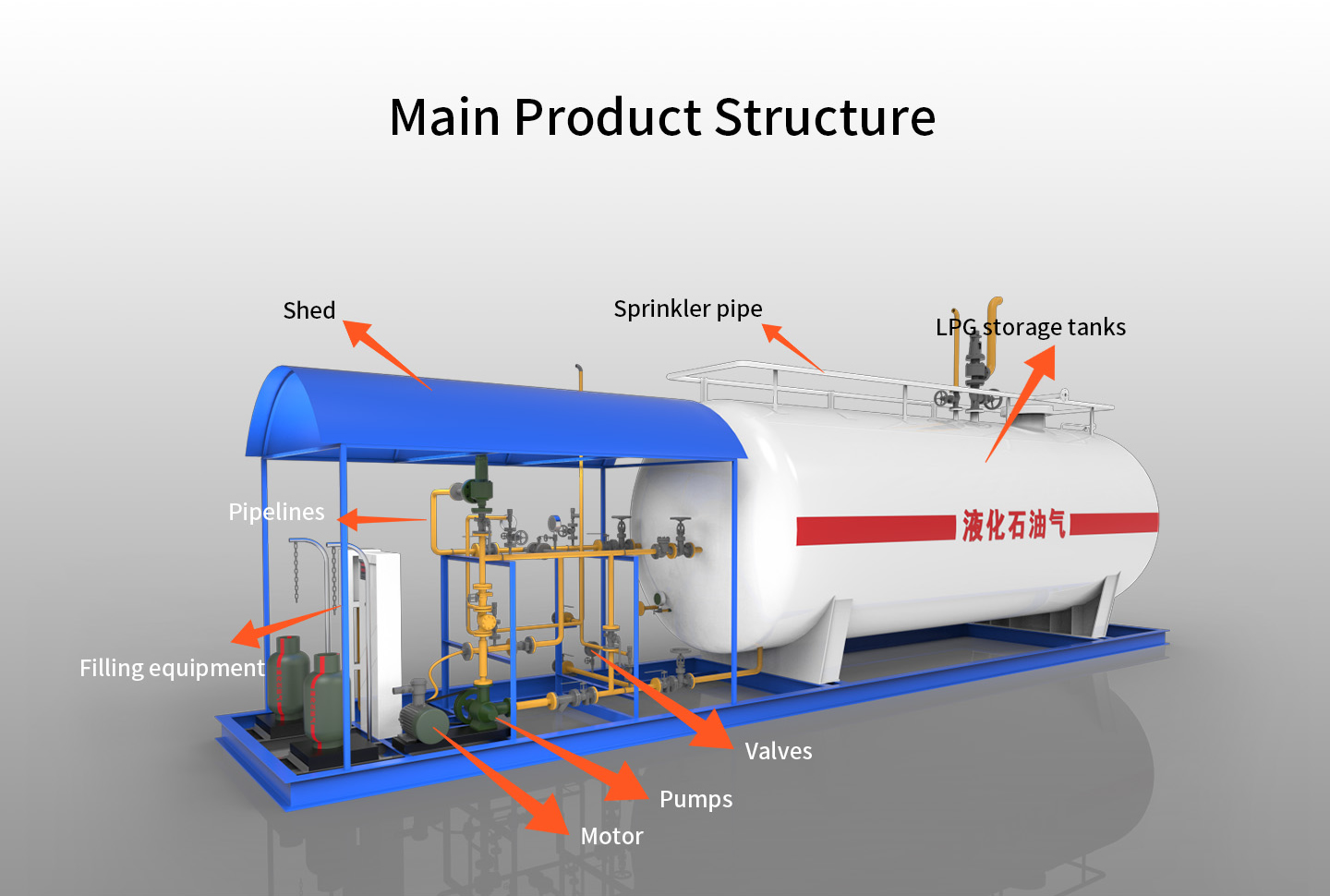

LPG skid station is an integrated mobile filling station with the functions of loading, unloading, storage and control. It is mainly used for filling steel cylinders(for cooking gas) in small LPG stations at home and abroad. According to the volume of LPG storage tank, it can be made into integrated or split LPG skid station of 5cbm to 60cbm.

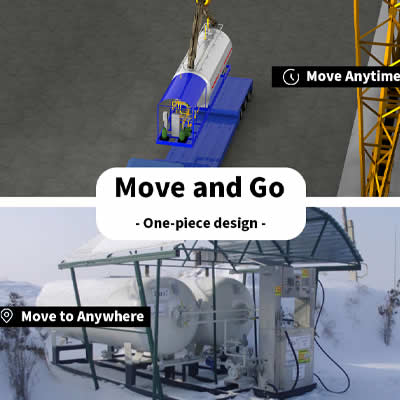

The one-piece design made it very easy to move.
As long as you connect the water inlet and plug in the power, you can use this product.

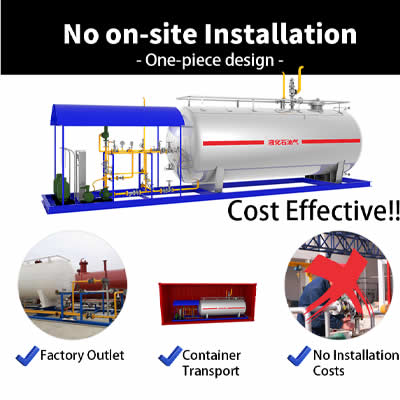

Factory outlet, save installation fee for you.

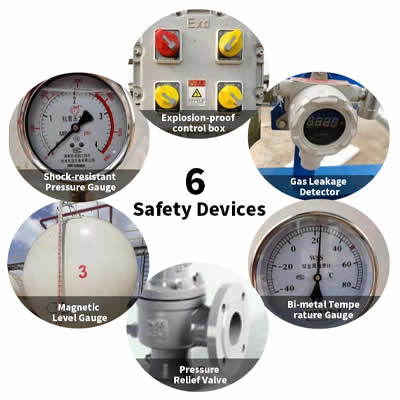

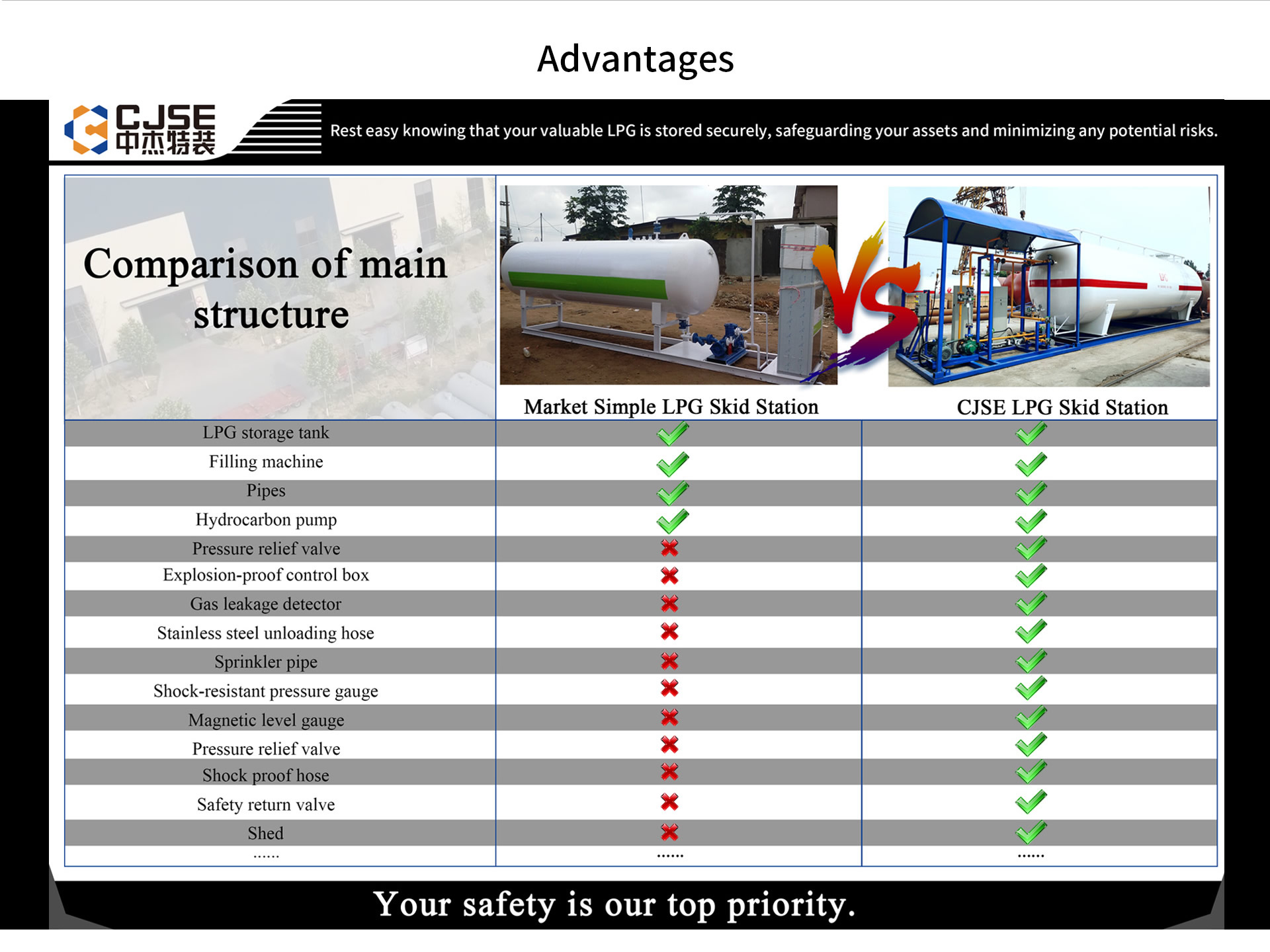

Six safety devices enable this product to operate more safely.
| Tank volume | Tank diameter | Overall reference size | Mode of transport | Skid type | Remark |
| 5m³ | DN1200 | 8363×1400×1881 | 40HQ | Integrated skid |
1、Tank diameter can be custonfiguration can be customized. |
| 10m³ | DN1600 | 8995 1900 2335 | 40HQ | Integrated skid | |
| 15m³ | DN1800 | 9947×2000×2584 | 40HQ | Integrated skid | |
| 20m³ | DN2000 | 10447×2200×2524 | 40HQ | Integrated skid | |
| 25m³ | DN2000 | 13637×2200×2784 | Bulk cargo ship | Integrated skid | |
| 30m³ | DN2600 | 11724×2800×3388 | Bulk cargo ship | Split skid | |
| 35m³ | DN2600 | 13614×2800×3388 | Bulk cargo ship | Split skid | |
| 40m³ | DN2600 | 15494×2800×3388 | Bulk cargo ship | Split skid |
Zhongjie Special Equipment attaches great importance to scientific research and innovation; Possess multiple technical patents
